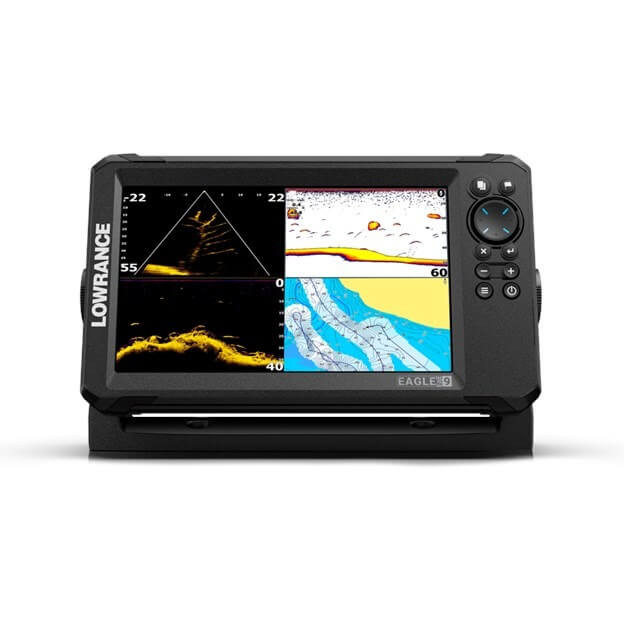

LOWRANCE EAGLE EYE 9" LIVE SONAR
The complete live sonar solution
Easy and affordable access to live sonar lets you watch fish react to your lure in real time. Eagle Eye™ brings you the same best-in-class live sonar resolution as seen on ActiveTarget® 2 in more focused down and forward views. With a smooth and consistent image, Eagle Eye provides all the detail you need to know when to strike.
Full Flexibility
The highly-focused live sonar combines with CHIRP and DownScan Imaging™ with FishReveal™ in a single transducer, giving you true Eagle-like vision for any kind of fishing.
FishReveal™
Take the guesswork out of fish identification with FishReveal, combining DownScan with CHIRP for unparalleled target separation and identification.
Autotuning Sonar
Simple autotuning sonar gives you the optimal settings from the start so you don’t have to spend time trying to find them yourself.
| Display |
Screen size 9" IPS Resolution 1024 x 600 |
Keypad 9-way directional keypad, pages, waypoint, exit, enter, zoom, menu, power Viewing angles in degrees 85° top/bottom, 85° left/right |
|---|---|---|
| Sonar |
Sonar compatibility Integrated: Max depth 200 kHz: 152m (500ft) Max range SideScan: 183m (600ft) side-to-side |
Sonar frequencies CHIRP* DownScan SideScan |
| Multifunction Support |
Cartography included AUS/NZ Enhanced Embedded Charts Cartography supported C-MAP® DISCOVER™ |
Waypoints, routes, tracks 3000 waypoints GPS Correction: Time to first fix: |
| Interface and Connectivity |
Sonar 1 port |
Card reader 1 slot (microSD) up to 32GB |
| Electrical |
Supply voltage 12 VDC Power consumption 650mA, 230mA at 12VDC (backlight full/off) |
Recommended fuse rating 5A |
| Physical |
Weight 0.90 kg (1.98 lbs) |
Mounting type Panel mount or bracket mount |
