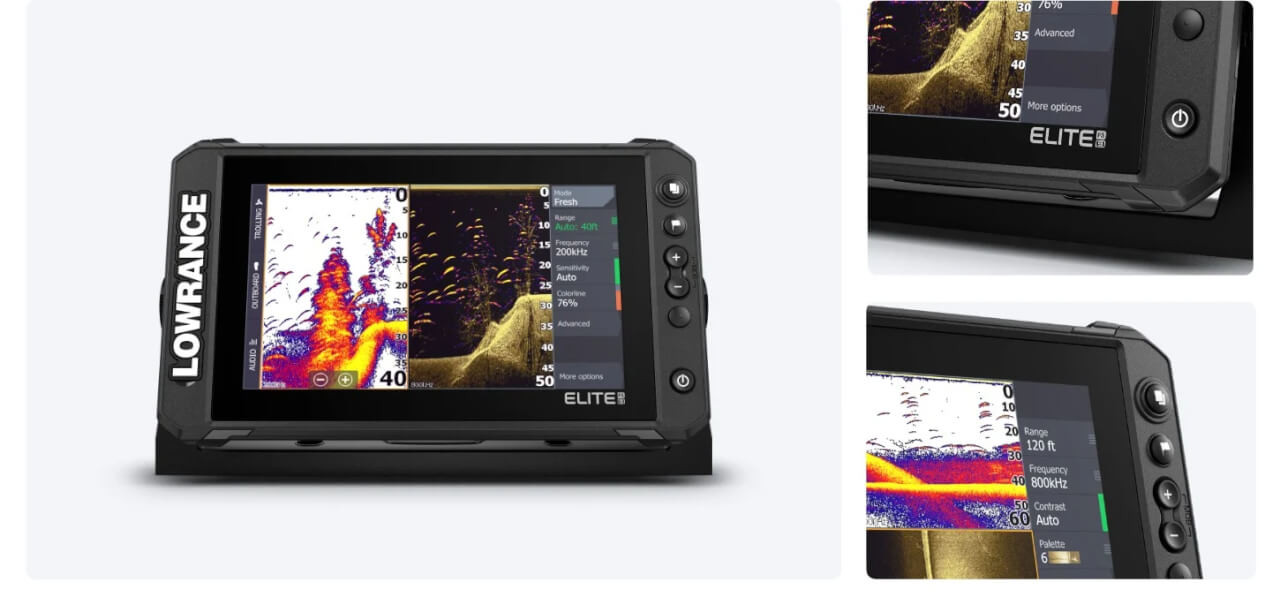

LOWRANCE ELITE FS 9" COMBO

Select your preferred store to see local availability:

We don't offer reserve or click & collect yet - please visit in person to purchase, or call ahead to confirm.

$1,799.00

The Elite Fishing System®

The Elite™ Fishing System (FS) gives you access to the full line-up of Lowrance fishfinding tools – including ActiveTarget™ 2 live sonar, Active Imaging™ and Active Imaging™ HD* and preloaded C-MAP® Enhanced Embedded charts – to help you make the most of your time on the water.





High resolution multi-touch screen





Active Imaging™ 3-in-1 & Active Imaging™ HD






Networking compatability




The best screen yet in our Elite Series, multi-touch with a flat glass screen and anti reflective coating gives great visibility in all light. A single user programmable key allows for quick selection of those vital and most used interactions.


Perfect for pinpointing fish-holding areas like rockpiles, standing timber, weedbeds, ditches and drop-offs, Active Imaging™ and Active Imaging™ HD* sonar delivers superior clarity and the highest resolution images of fish and structure at a longer range than any other structure-imaging technology.

Ethernet networking comes to the Lowrance Elite family, share sonar, charts, waypoints and other user data between multiple displays. Support and control of NMEA2000® devices, build the complete Elite Fishing System for freshwater or saltwater.



Display

Screen size

9" IPS

Resolution

800x480

Brightness

>1200 nits

Touchscreen

Multitouch

Keypad

Pages, waypoint, zoom, power, (1) user programmable quick access keys

Viewing angles in degrees

50° top 60° bottom 70° left/right
Sonar

Sonar compatibility

Integrated:
CHIRP, Broadband, Active Imaging™ HD DownScan*, Active Imaging™ HD SideScan*, Active Imaging™ DownScan, Active Imaging™ SideScan
*requires S3100 module

Compatible with:
ActiveTarget® 2, ActiveTarget®, S3100, SonarHub®, StructureScan®, StructureScan®HD, StructureScan®3D, LiveSight (requires PSI-1 module)

Sonar frequencies

CHIRP
High CHIRP
Medium CHIRP
Low CHIRP
(depending on transducer)

Broadband
50 kHz
83 kHz
200 kHz
(depending on Broadband transducer)

Active Imaging
800 kHz
455 kHz

Active Imaging HD (Via additional S3100 module)
DownScan:
700 kHz CHIRP
1200 kHz CHIRP

SideScan:
455 kHz CHIRP
1075 kHz CHIRP
Multifunction Support

AIS

AIS chart overlay.
Target vessel details.

Autopilot

Outboard Pilot

Ghost® Trolling Motor

Recon™ Trolling Motor

MotorGuide Xi5/Xi3 Trolling Motor (requires Motorguide PinPoint Gateway)

Cartography included

AUS/NZ Enhanced Basemap

Cartography supported

C-MAP® REVEAL™
C-MAP® DISCOVER™
C-MAP® Genesis
Navionics (Gold, NAV+ Platinum+)
Lowrance Regional Mapping Partners

GPS

10 Hz Internal high-sensitivity WAAS + EGNOS + MSAS

Multimedia

SonicHub
SonicHub2
FusionLink products
Any NMEA 2000 compliant marine audio products

Weather

SiriusXM via WM-4 (USA only)

Compass safe distance

12" (300mm)

Waypoints, routes, tracks

3000 Waypoints
100 Routes
100 Trails with up to 10,000 points per trail
Interface and Connectivity

NMEA 2000®

1x Micro-C

Ethernet

1 x 100Mbit

Card reader

1 micro SD card up to 32GB

Wi-Fi®

Internal 802.11b/g/n

Bluetooth®

Bluetooth® 4.0 with support for Bluetooth® classic
Electrical

Supply voltage

12 V DC (10.8 - 17 V DC)

Power consumption (Max)

2.0A @ 13VDC with backlight on full

Recommended fuse rating

3 A
Physical

Weight (display only)

1.2 kg (2.7 lbs)

Mounting type

Gimbal Bracket or Dash Flush Mount
