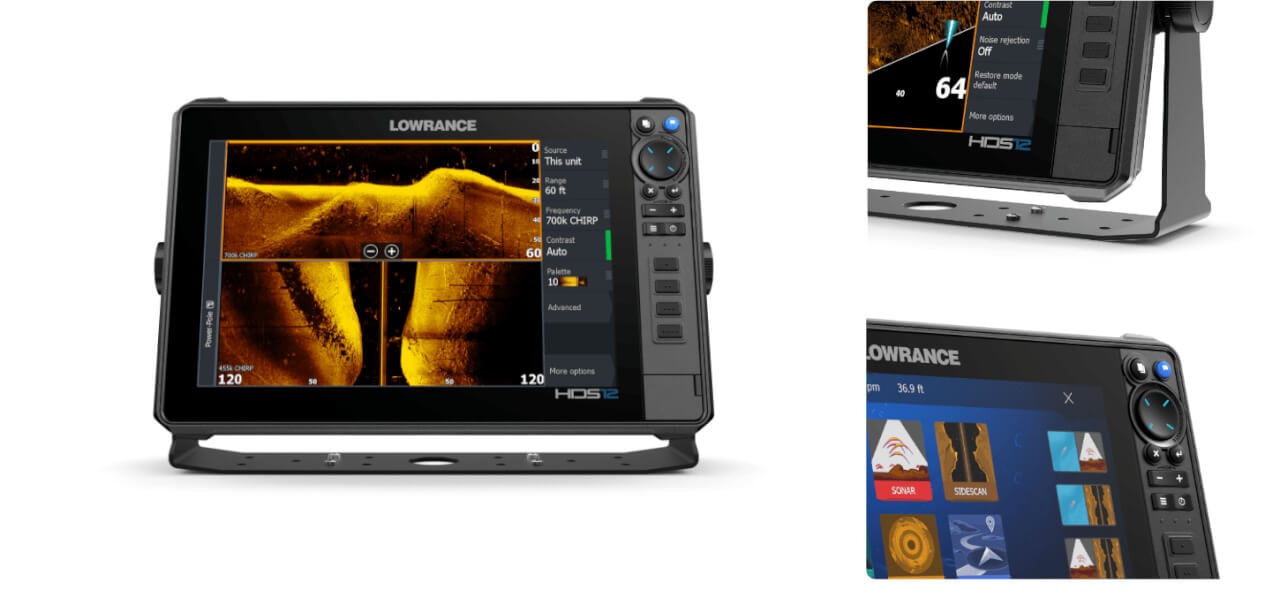

LOWRANCE HDS PRO 12" COMBO

Select your preferred store to see local availability:

We don't offer reserve or click & collect yet - please visit in person to purchase, or call ahead to confirm.

$4,299.00

The Ultimate Fishing System

HDS® PRO forms the heart of the Ultimate Fishing System, with bow-to-stern boat control covering trolling motors, Power-Poles, autopilots, engines, radar, and more.

See more and catch more with HDS® PRO, the ultimate fish-finding tool. With built-in support for the ultra-high-definition Active Imaging™ HD and the highest-resolution ActiveTarget® 2 live sonar, you’ll see more clearly and find more fish than ever before.



See the Difference


Level up to the ultimate fish finding clarity with the ultra high-definition Active Imaging™ HD sonar. Get the clearest images of fish and structure with Lowrance® CHIRP sonar. Harness FishReveal™ SideScan* and DownScan views to easily identify fish to the sides and beneath the boat.


FishReveal™ Smart Target View


Get the best of CHIRP sonar and DownScan Imaging™ on one screen with the exclusive FishReveal™ Smart Target view that helps you easily recognize fish from structure and cover on high-detailed DownScan images.


KNOW WHERE TO CAST

Quickly recognize if your technique is working or if you need to make an adjustment to get the fish to strike. Delivering a smoother and more consistent image across the entire range, ActiveTarget® 2 gives you the full live-action picture in forward, down and scout views.




Display

Screen size

12" SolarMAX HD IPS

Resolution

1280 x 800

Brightness

>1200 nits

Touchscreen

Multitouch

Keypad

8-way directional keypad, pages, waypoint, exit, enter, zoom, menu, power, (4) user programmable quick access keys

Viewing angles in degrees

80° top/bottom, 80° left/right
Sonar

Sonar compatibility

Integrated:
CHIRP, Broadband, Active Imaging™ HD DownScan, Active Imaging™ HD SideScan, Active Imaging™ DownScan, Active Imaging™ SideScan

Compatible with:
ActiveTarget® 2, ActiveTarget®, S3100, SonarHub®, StructureScan®, StructureScan®HD, StructureScan®3D, LiveSight (requires PSI-1 module)

Sonar Output Power

Independent dual 1 kW capable depending on connected transducer

Max Depth

5000ft (1524m) depending on transducer

Sonar frequencies

CHIRP
High CHIRP
Medium CHIRP
Low CHIRP
(depending on transducer)

Broadband
50 kHz
83 kHz
200 kHz
(depending on Broadband transducer)

Active Imaging
800 kHz
455 kHz

Active Imaging HD
DownScan:
700 kHz CHIRP
1200 kHz CHIRP

SideScan:
455 kHz CHIRP
1075 kHz CHIRP
Multifunction Support

AIS

AIS chart and radar overlay.
Target vessel details.

Autopilot

Outboard Pilot

NAC-1
NAC-2

Ghost® Trolling Motor

Recon™ Trolling Motor

MotorGuide Xi5/Xi3 Trolling Motor (requires Motorguide PinPoint Gateway)

Cartography included

AUS/NZ Enhanced Basemap

Cartography supported

C-MAP® REVEAL™
C-MAP® DISCOVER™
C-MAP® Genesis
Navionics (Gold, NAV+ Platinum+)
Lowrance Regional Mapping Partners

Digital switching

CZONE®
Naviop

Internal storage

8GB internal

Multimedia

SonicHub
SonicHub2
FusionLink products
Any NMEA 2000 compliant marine audio products

Radar compatibility

HALO® 20/20+/24 (Pulse Compression Dome Radar)

HALO® 3'/4'/6' (Open Array Pulse Compression Radar)

Compass safe distance

65 cm (2.1 ft)

GPS

10 Hz GPS/GLONASS
WAAS/EGNOS/MSAS

Waypoints, routes, tracks

3000 Waypoints
100 Routes
100 Trails with up to 10,000 points per trail
Interface and Connectivity

NMEA 2000®

1 port (Micro-C connector)

NMEA 0183®

1 port (via the power connector)

Sonar

2 ports

Analog video

1 port (via the power cable, adapter cable sold separately)

HDMI®

1 port for external input (HDMI® 1.4 sink and HDCP)

Ethernet

2 100 Mbit ports (5-pin connector), up to 6 MFDs on a network

Card reader

2 slots (microSD SDXC) up to 32GB

Wi-Fi®

Internal 802.11b/g/n and compatible with WiFi-1 Module

Bluetooth®

Bluetooth® 4.0 with support for Bluetooth® classic

USB

1 port (USB A)
Output: 5 V DC, 1.5 A.
Max 32GB capacity
Electrical

Supply voltage

12 V DC (10.8 - 17 V DC)

Power consumption (Max)

47.7 W (3.6 A at 13.8 V DC)

Recommended fuse rating

5 A
Physical

Weight (display only)

2.61 kg (5.76 lbs)

Compass safe distance

50 cm (1.6 ft.)
