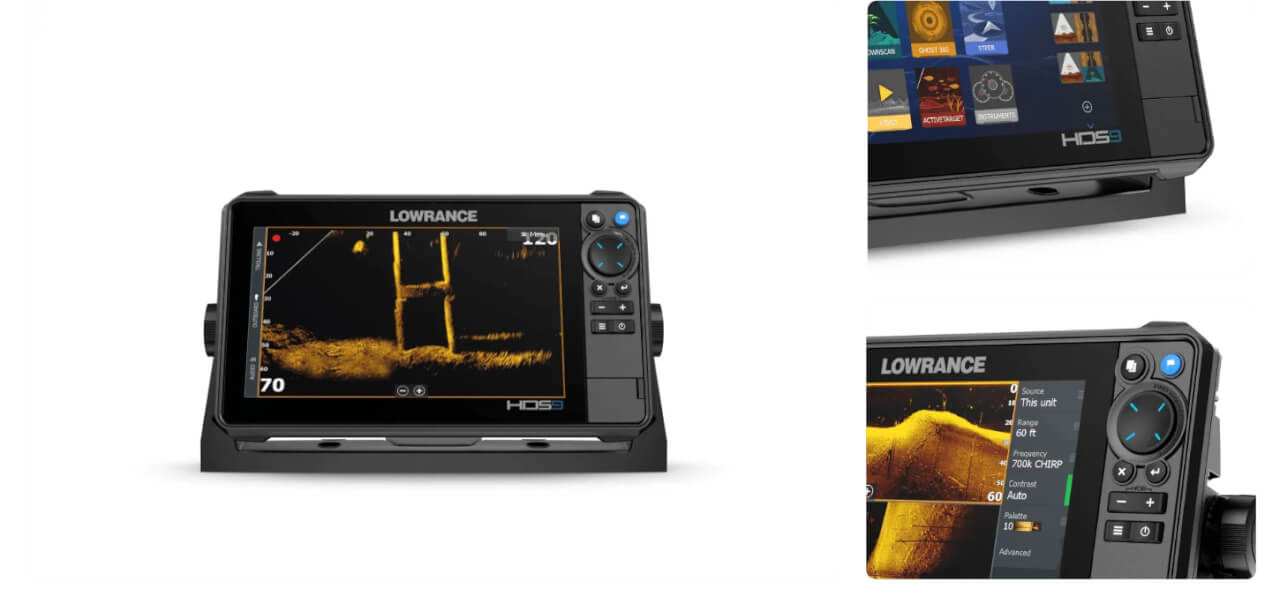

LOWRANCE HDS PRO 9" COMBO
The Ultimate Fishing System
HDS® PRO forms the heart of the Ultimate Fishing System, with bow-to-stern boat control covering trolling motors, Power-Poles, autopilots, engines, radar, and more.
See more and catch more with HDS® PRO, the ultimate fish-finding tool. With built-in support for the ultra-high-definition Active Imaging™ HD and the highest-resolution ActiveTarget® 2 live sonar, you’ll see more clearly and find more fish than ever before.
Level up to the ultimate fish finding clarity with the ultra high-definition Active Imaging™ HD sonar. Get the clearest images of fish and structure with Lowrance® CHIRP sonar. Harness FishReveal™ SideScan* and DownScan views to easily identify fish to the sides and beneath the boat.
Get the best of CHIRP sonar and DownScan Imaging™ on one screen with the exclusive FishReveal™ Smart Target view that helps you easily recognize fish from structure and cover on high-detailed DownScan images.
Quickly recognize if your technique is working or if you need to make an adjustment to get the fish to strike. Delivering a smoother and more consistent image across the entire range, ActiveTarget® 2 gives you the full live-action picture in forward, down and scout views.
| Display |
Screen size 9" SolarMAX HD IPS Resolution 1280 x 720 Brightness >1200 nits |
Touchscreen Multitouch Keypad 8-way directional keypad, pages, waypoint, exit, enter, zoom, menu, power Viewing angles in degrees 80° top/bottom, 80° left/right |
|---|---|---|
| Sonar |
Sonar compatibility Integrated: Compatible with: Sonar Output Power Independent dual 1 kW capable depending on connected transducer Max Depth 5000ft (1524m) depending on transducer |
Sonar frequencies CHIRP Broadband Active Imaging Active Imaging HD SideScan: |
| Multifunction Support |
AIS AIS chart and radar overlay. Autopilot Outboard Pilot NAC-1 Ghost® Trolling Motor Recon™ Trolling Motor MotorGuide Xi5/Xi3 Trolling Motor (requires Motorguide PinPoint Gateway) Cartography included AUS/NZ Enhanced Basemap Cartography supported C-MAP® REVEAL™ Digital switching CZONE® |
Internal storage 8GB internal Multimedia SonicHub Radar compatibility HALO® 20/20+/24 (Pulse Compression Dome Radar) HALO® 3'/4'/6' (Open Array Pulse Compression Radar) Compass safe distance 65 cm (2.1 ft) GPS 10 Hz GPS/GLONASS Waypoints, routes, tracks 3000 Waypoints |
| Interface and Connectivity |
NMEA 2000® 1 port (Micro-C connector) NMEA 0183® 1 port (via the power connector) Sonar 2 ports Analog video 1 port (via the power cable, adapter cable sold separately) |
Ethernet 2 100 Mbit ports (5-pin connector), up to 6 MFDs on a network Card reader 2 slots (microSD SDXC) up to 32GB Wi-Fi® Internal 802.11b/g/n and compatible with WiFi-1 Module Bluetooth® Bluetooth® 4.0 with support for Bluetooth® classic |
| Electrical |
Supply voltage 12 V DC (10.8 - 17 V DC) Power consumption (Max) 40 W (2.9 A at 13.8 V DC) |
Recommended fuse rating 3 A |
| Physical |
Weight (display only) 1.39 kg (3.06 lbs) Compass safe distance 50 cm (1.6 ft.) |
Mounting type Panel mount or bracket mount |
